Speed limiter kit V2

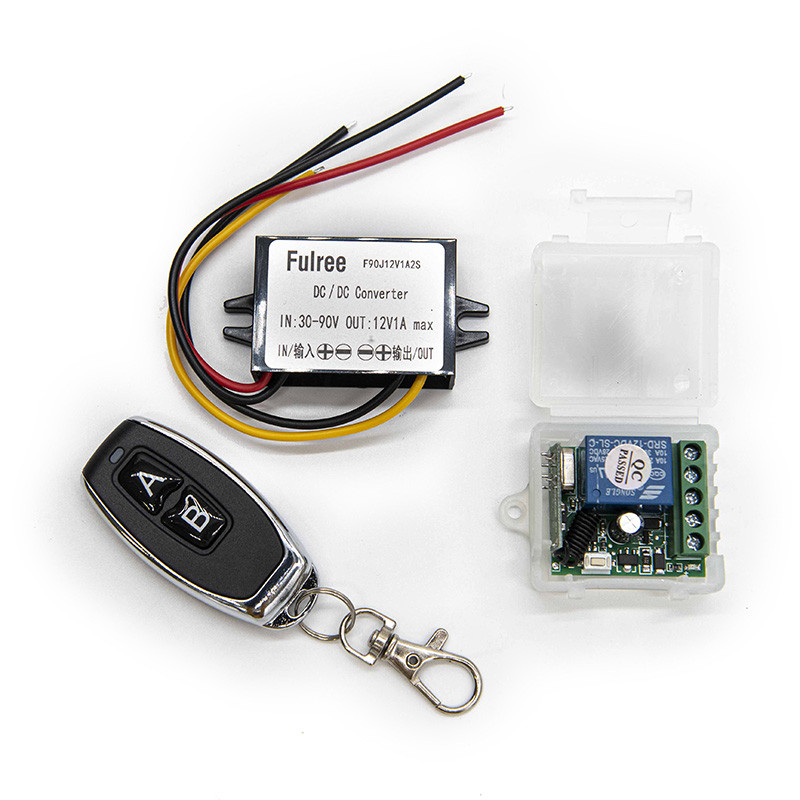

Delivered with :

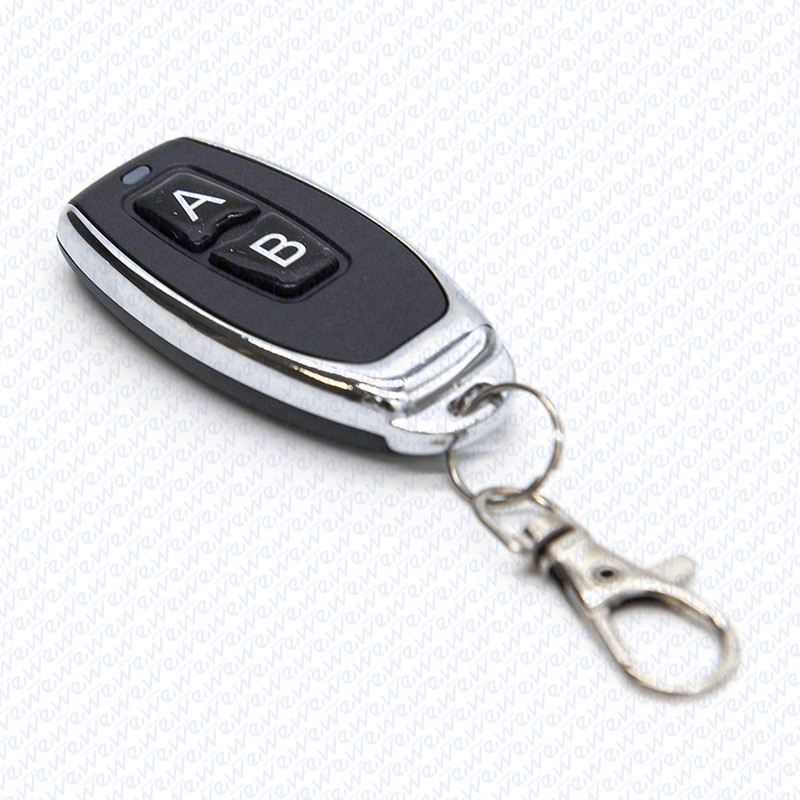

- remote

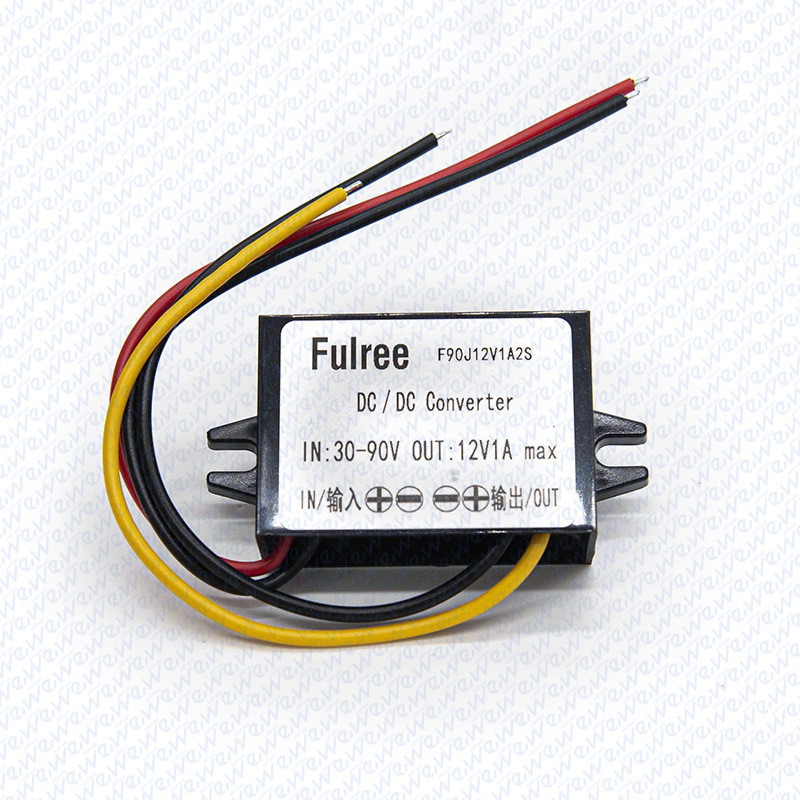

- Voltage Regulator

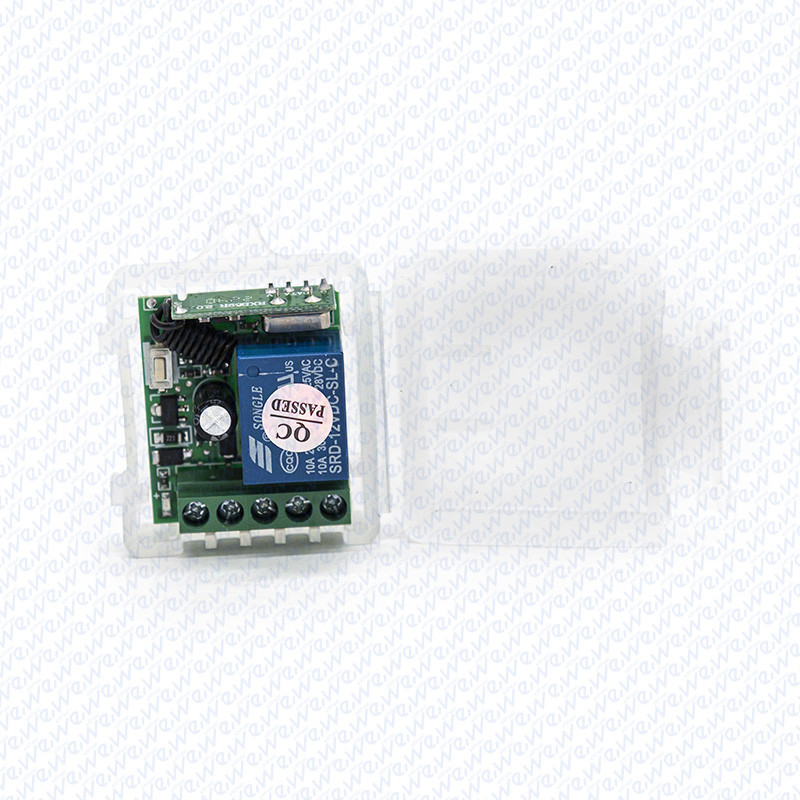

- Switch plate with antenna

- Plastic box

* Kit valid for voltages up to 90V, it is not necessary to install the regulator if the board voltage never exceeds 30V, for higher voltages it is necessary to install the voltage regulator.

Facility :

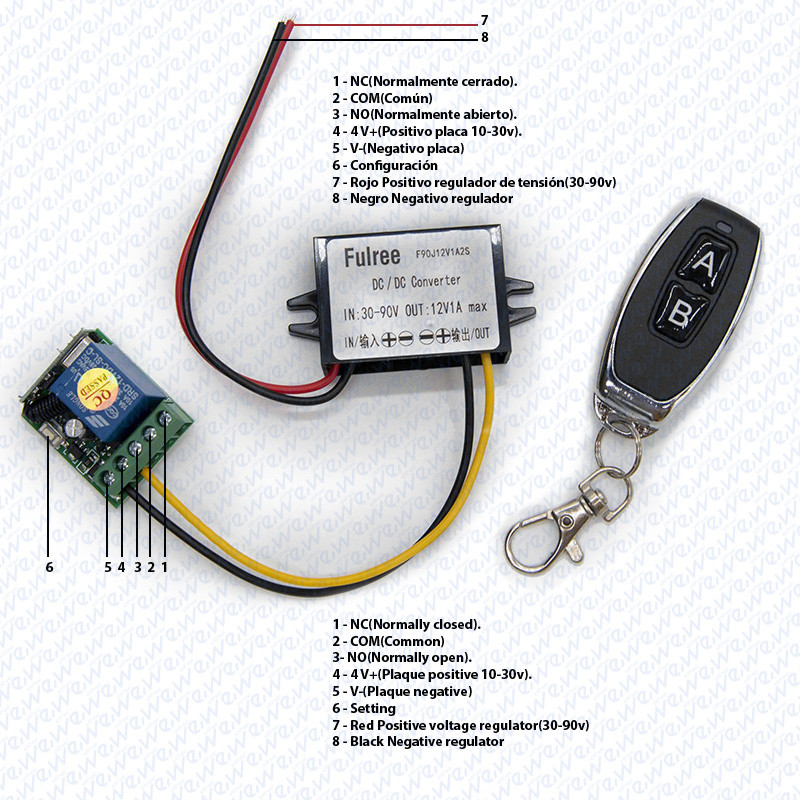

You need to power the voltage regulator with voltage from the battery/contact (if you have one) and this powers the switch board, as in the diagram in the picture. In cases where the battery voltage does not exceed 30v, it is not necessary to install the voltage regulator.
To perform the limitation, the controller must have a limitation cable, if it does not have one, it is not compatible.
One end of the controller limit cable should be connected to the switch board common and the other can be connected to NO or NC, depending on whether you want the pad to turn on in limited (NC) or limited (NO). ).

For more information, see the product image.
